Product overview

Belassi jet pump 165/14

Engineered for peak performance and durability, the Belassi Jet Pump is the ideal propulsion solution for engines up to 300 kW / 400 hp. Constructed from high-quality stainless steel, it delivers exceptional strength and resistance under mechanical stress. Featuring three independent cooling supplies and the option to add a redundant steering cable.

Chat with us

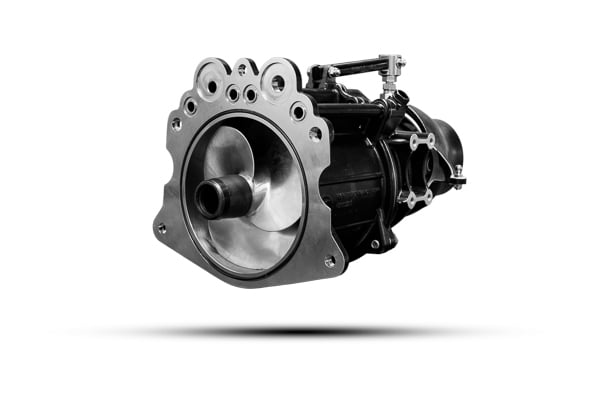

belassi_jet_pump_161_165_mm_front_impeller_web
belassi_jet_pump_161_165_mm_side_web

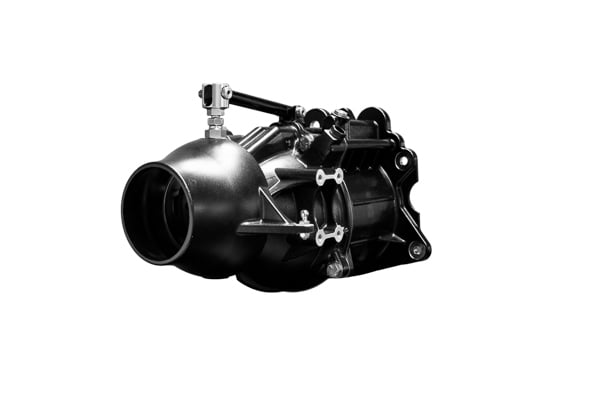

belassi_jet_pump_161_165_mm_nozzle_rear_web
belassi_jet_pump_161_165_mm_top_view_web

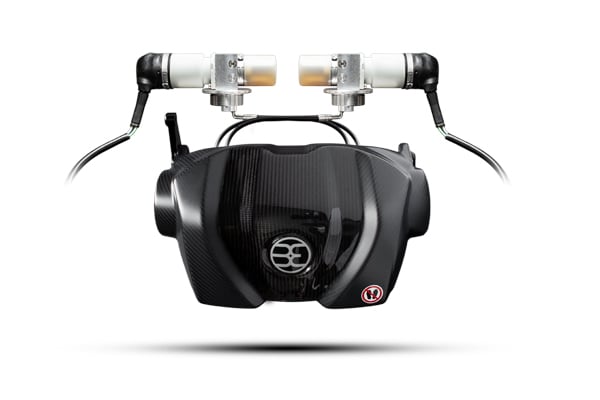

belassi_brake_trim_bucket_web
belassi_jet_pump_161_165_mm_front_impeller_web belassi_jet_pump_161_165_mm_side_web belassi_jet_pump_161_165_mm_nozzle_rear_web belassi_jet_pump_161_165_mm_top_view_web belassi_brake_trim_bucket_web

Input Power up to

400hp

Weight

21kg

Max speed

8200rpm

Diameter up to

165mm

Constructed from high-quality stainless steel, it delivers exceptional strength and resistance under mechanical stress. Featuring three independent cooling supplies, it guarantees reliability and robust performance in the most demanding conditions.

Technical specifications



Max input Power 400 hp / 300 kW
Max RPM 8200
Jet Type Axial flow with 14 vane
Diameter from 161 to 165 mm
Hub/Cone Diameter 83 mm
Standard Impeller Pitch 14/23 - 3 Blade
Weight 21 kg / 46,3 lb
Material Stainless Steel
Optional Hydraulic – Electric Trim / Reverse controls

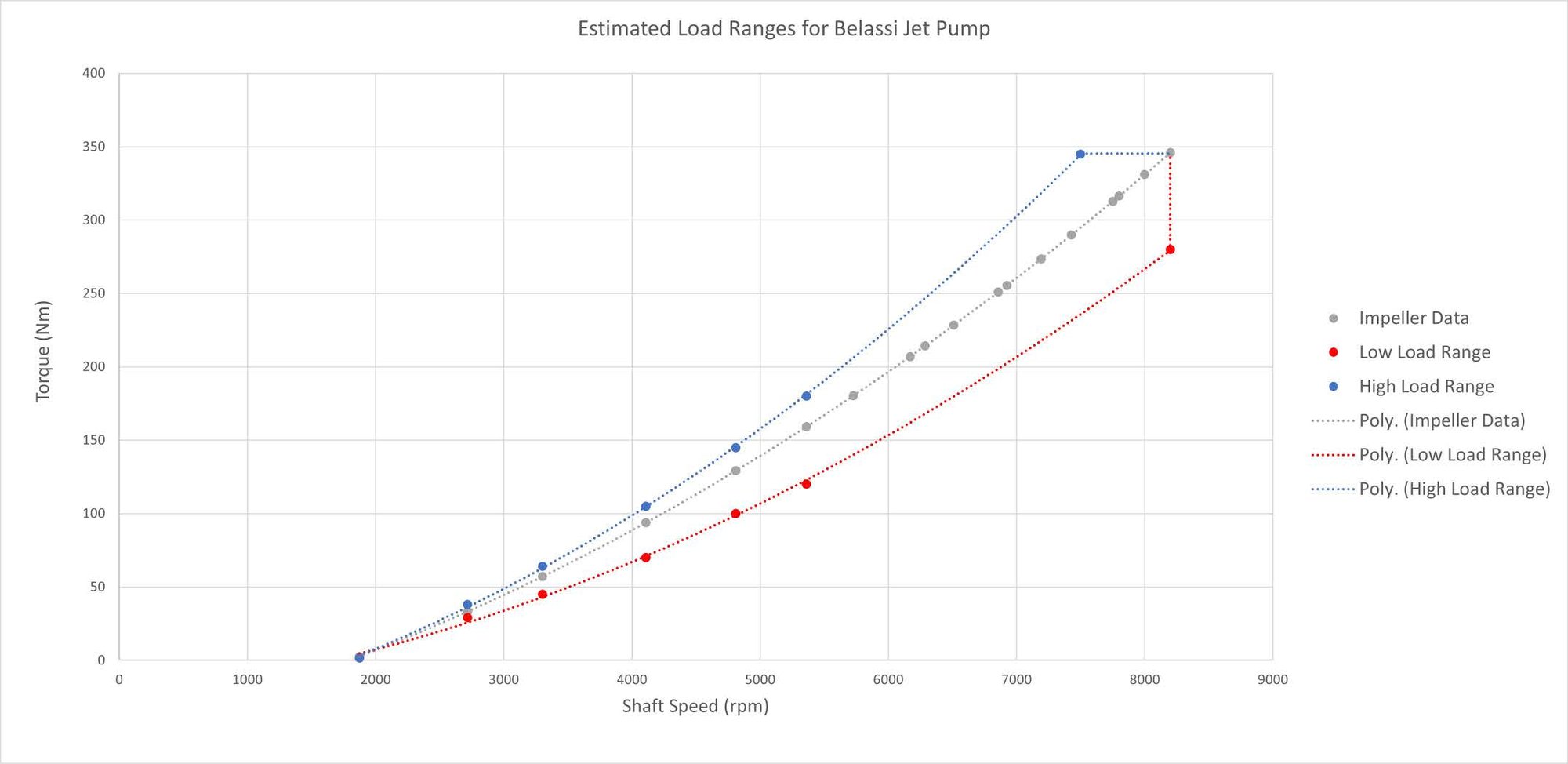

Belassi_Jet_Pump_160_Range_14_vane
